GEOTEXTILE / GEOSYNTHETICS TESTING INSTRUMENTS

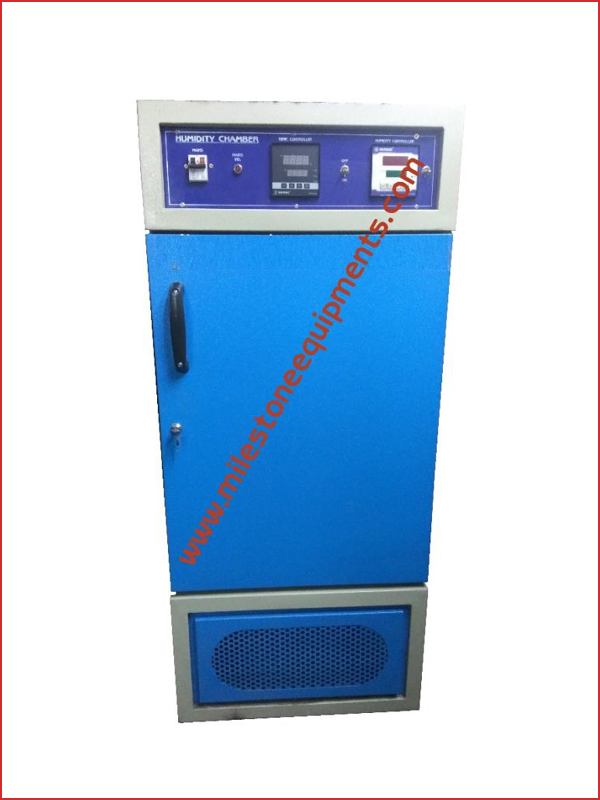

Double walled inside S.Steel and outside M. Steel painted with stove enamel door provided with glass window. Stainless steel water bath with heater is provided inside the chamber to create humidity in the chamber, provided with refrigeration to control temperature range from 5^oC to 60^oC +/- 2^oC and humidity is ambient to 90% Stainless steel water bath with heater is provided inside the chamber timer is provided to regulate the cyclic illumination. +/-5% and fitted with digital temp. & humidity indicator cum controller. Humidity is displayed in percentage.

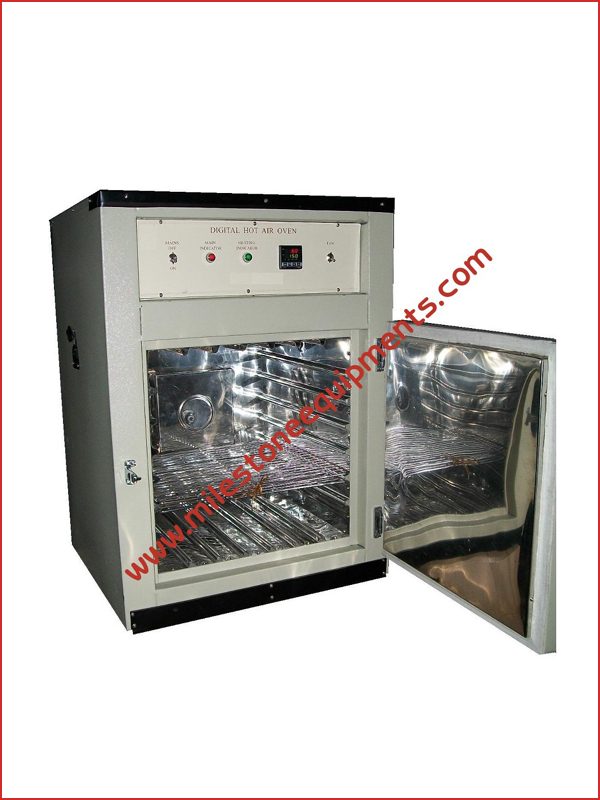

Double walled construction. Inner chamber made of anodized Aluminum / S. Steel Outer body made of mild steel is powder coated/painted. Temperature controlled by Digital Indicator and controller. The gap between the inner & outer chamber is filled with high grade glass wool to avoid the thermal losses and having perforated adjustable trays. Two pilot lamp on/off switch. Work on 220/230 VAC. Many Different size are available

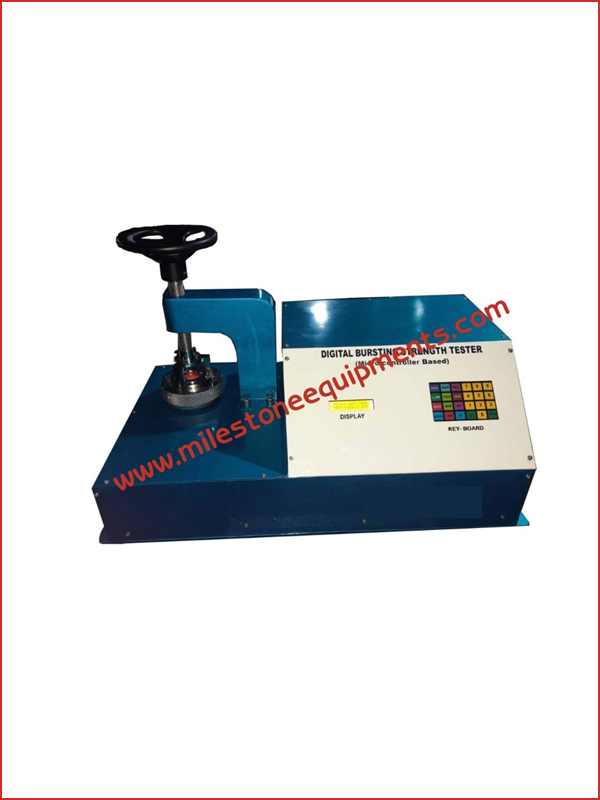

The Bursting Strength Tester is designed to find bursting strength of geotextile/fabric/leather/paper/paper board. A test specimen is held between two annular clamps under sufficient pressure to minimize slippage. The upper clamping surface which is in contact with the test specimens has a continuous spiral grooves. A circular diaphragm of rubber is clamped between the lower clamping plate & pressure cylinder so that before the diaphragm is stretched by pressure underneath it the center of its upper surface is below the plane of the clamping surface. The equipment is fitted with a motor driven cam mechanism, which increases fluid displacement on the lower side of the diaphragm at a specified rate. The equipment is fitted with an arrangement, which automatically brings down the pressure and stops the motor on completion of the test cycle. A maximum reading type pressure gauge gives the bursting pressure. The equipment is raggedly designed to give a long & trouble free life.

Technical Specification

• Capacity: 35kg /cm2 and above
• Opening in upper clamp: 30.5 mm diameter
• Opening in lower clamp: 38.1 mm diameter
• Rate of fluid displacement: 95 cc/ minute
• Test fluid: Glycerin
• Gear Box: Worm reduction type

Note: Digital type pressure gauge with and without pneumatic clamp type also available.

Air Permeability tester up to with four different type adaptor 5 cm2, 10 cm2, 20 cm2 & 38 cm2, with Manometer & Rota Meter.

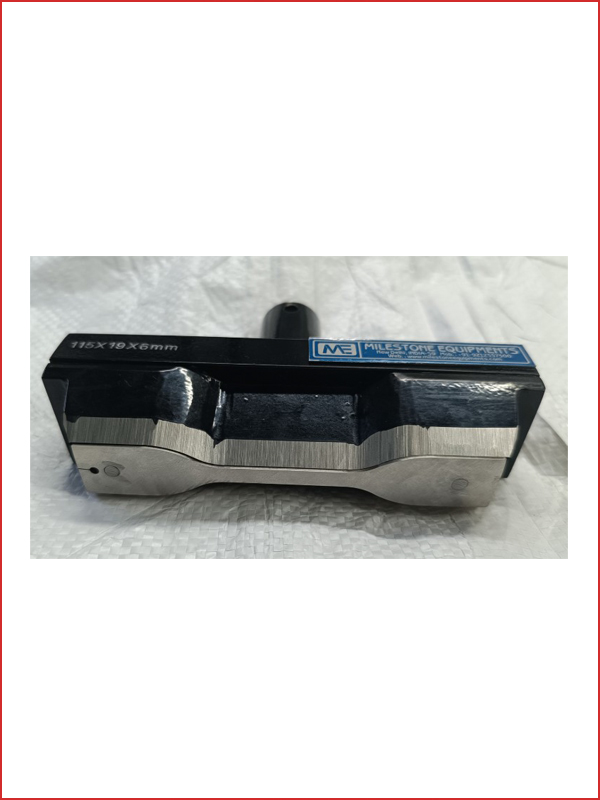

Used to Draw Sample for testing from the sheet. Made of high Quality Die steel with accuracy. Available in many size.
