Liquid Limit Device

The liquid limit, defined as the moisture content at which the soil passes from the plastic state to the liquid state, is very helpful in the classification of the potential properties of the soil material. The liquid limit gives a measure of the shearing resistance which a soil has when mixed with water. Casagrande Method or Cone Penetrometer Method can determine the liquid limit of soil.
Meets: - BS: 1377, ASTM: 89, IS: 2720 (Part 5), IS: 9259
Milestone Equipments offers the following models

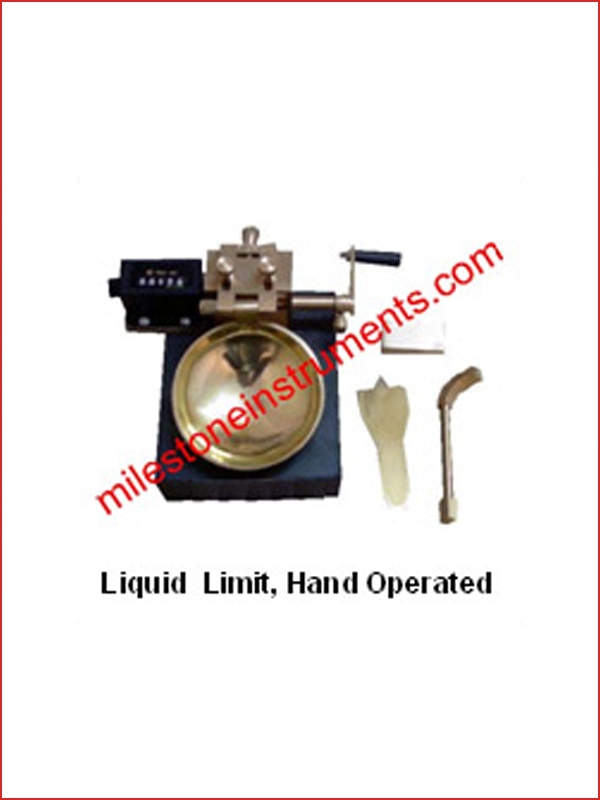

• Liquid Limit Device complete with Casagrande's grooving tool and gauge block
  The Liquid Limit Device consists of a hard rubber base carrying a sliding carriage assembly to which a brass cup is hinged. The cup is raised and allowed to fall through a height of 1 cm on to the hard rubber base, by the help of a lead screw provided at the back of the sliding carriage. Supplied complete with Casagrande Grooving Tool and Gauge Block
• Liquid Limit Device complete with Casagrande's grooving tool, gauge block and Counter

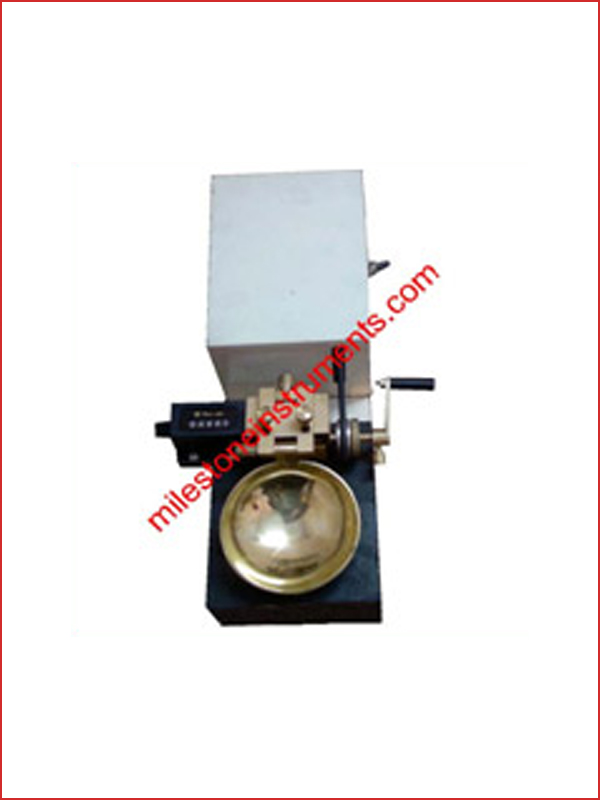

• Liquid Limit Device, Motorised, complete with Casagrande's grooving tool, gauge block and Counter
  The Liquid Limit Device consists of a hard rubber base carrying a sliding carriage assembly to which a brass cup is hinged. The cup is raised and allowed to fall through a height of 1 cm on to the hard rubber base, by the help of of electric motor which operates on 220 Volts 50 Hz. and also lead screw provided at the back of the sliding carriage Supplied complete with Casagrande Grooving Tool and Gauge Block
